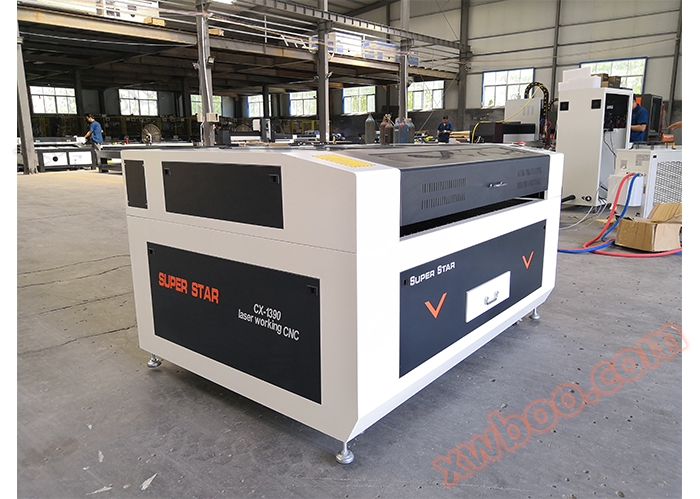

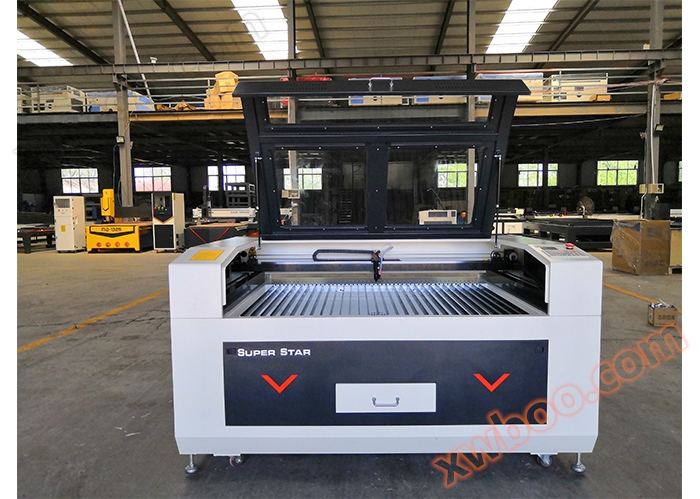

Laser engraving machine CX-1390
Product feature 1: DSP control system, USB offline use, more convenient to use; Discontinue carving function
Product details
Product Features
1. DSP control system, USB offline use, more convenient to use; Discontinue carving function.
2software compatibilityCorelDraw, AutoCAD, Photoshop and various graphics processing software seamlessly integrate, with direct original image output function and zero error rate
3. Using branded high-speed motor drivers combined with the system, running for 24 hours without losing steps for an extended period of time
4. Humanized appearance design, front and rear feeding, universal wheel movement, making your production and processing more flexible
5. Using Fulong belt transmission, it has fast speed, high precision, wear resistance, and long service life
Application materials：wooden products stone organic glass Two-color palette plastic fabric leather paper glass crystal
Product Parameters
|
typenumber |
CX-1390 |
|
workwidthnoodles |
1300*900mm |
|
Overall dimensions |
1820*1320*1100mm |
|
laser type |
Sealed CO2 laser tube |
|
laser power |
60w 80w 100w |
|
cooling method |
Forced water cooling and protection system |
|
carving speed |
0-60,000mm/min |
|
cutting speed |
0-1000mm/min |
|
Repetitive positioning accuracy |
±0.05mm |
|
Shaped Text |
Text 1 × 1mm English 0.7 × 0.7mm |
|
Support graphic formats |
BMP HPGL PLT DST AI |
|
control |
DSP Offline Control System |
|
Compatible software |
CorelDraw, AutoCAD, Photoshop |
|
drive motor |
Leisai Stepper Subdivision Driver |
|
Working Voltage |
AC 110-220V±10%,50-60Hz |
|
Operating Temperature |
0-45℃ |
|
Operating Humidity |
5-95% |
|
Total machine power |
≤900W |
|
Total weight |
420kg |
Applicable Industries
Applicable IndustriesStone and glass craftsmanship craft gifts advertisement Clothing leather Craft Paper Cuttings toy
recommendWooden craft pendant carving machine, bamboo slips carving, crystal carving, irregular workpiece carving, clothing leather carving
