SM-130LS 0-50mm dial thickness gauge from TECLCOK Japan
SM-130LS 0-50mm dial thickness gauge from TECLCOK Japan Model: SM-130LS Brand: TECLCOK Japan * Small scale: 0
Product details
SM-130LS 0~50mmDial type thickness gauge from JapanTECLCOK Deli
model: SM-130LS
Brand:JapanTECLCOK Deli
*Small scale: 0.01 mm
measuring range: 50mm
accuracy: ±25um
Flatness:ーum
Dial scale: ±0-50-100
Measuring force:2.2 or less
Upper measuring head: φ 3.2 ball probe
Lower measuring head: φ 10 flat measuring head
weight:620g
Reference image of probe:
Dial type thickness gauge model:
SM-130、SM-130LS、SM-130LW
Dial type thickness gauge Alias:
Dial type thickness gauge, handheld thickness gauge, thickness gauge, thickness gauge
Dial type thickness gauge Product Description:
*The small scale has0.01
Improve the measuring anvil, the measuring stroke can reach50mm
Dial type thickness gauge Purpose:
Widely used, it can measure the thickness of paper, hair, rubber sheets, metal tubes, pearls, etc.
Dial type thickness gauge Probe:
|
Standard type |
LS type |
LW type |
3A type |
FE type |
AT type |
|

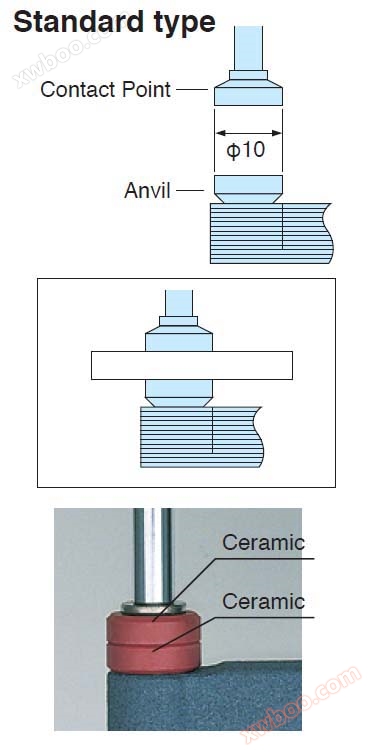

Material: Ceramic Upper measuring head:�Ø10mmplane Lower measuring head:�Ø10mmplane |

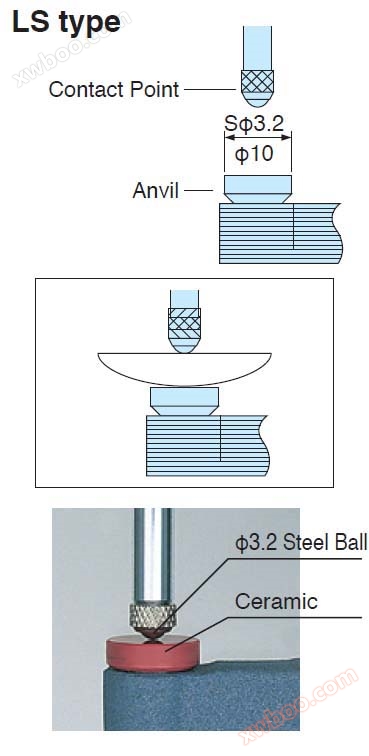

Material: The upper measuring head is a steel ball, and the lower measuring head is a ceramic Upper measuring head:�Ø3.2mmsphere Lower measuring head:�Ø10mmplane |

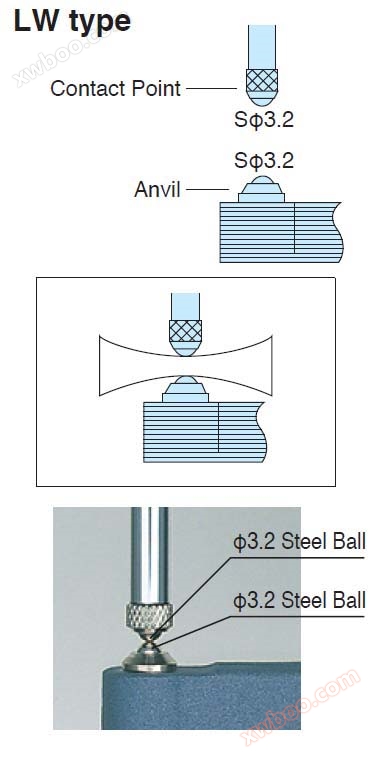

Material: Both the upper and lower measuring heads are steel balls Upper measuring head:�Ø3.2mmsphere Lower measuring head:�Ø3.2mmsphere |

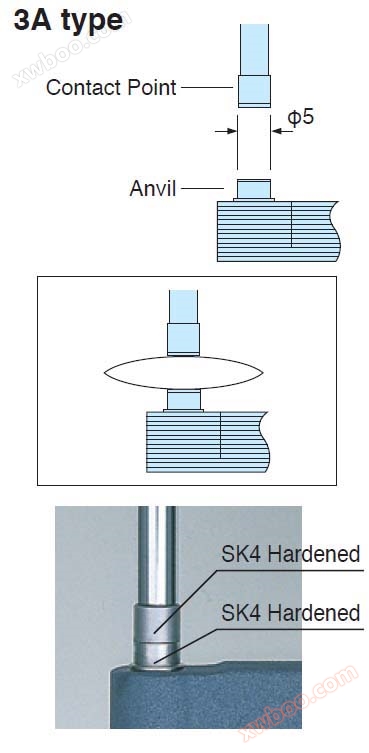

Material: Hardened SK4 Upper measuring head:�Ø5mmplane Lower measuring head:�Ø5mmplane |
Material: Hardened SK4 Upper measuring head:�Ø10mmplane Lower measuring head:�Ø10mmplane |
Material: Steel with special coating Upper measuring head:�Ø10mmplane Lower measuring head:�Ø10mmplane |
|
|
|
|
|
|
|
Dial type thickness gauge Specifications:
|
model |
*Small scale |
measuring range |
accuracy |
Flatness |
Dial scale |
Measuring force |
Upper measuring head |
Lower measuring head |
weight |
|
SM-130 |
0.01 |
50 |
±25 |
5 |
±0-50-100 |
2.2 or less |
φ 10 flat measuring head |
φ 10 flat measuring head |
620 |
|
SM-130LS |
0.01 |
50 |
±25 |
ー |
±0-50-100 |
2.2 or less |
φ 3.2 ball probe |
φ 10 flat measuring head |
620 |
|
SM-130LW |
0.01 |
50 |
±25 |
ー |
±0-50-100 |
2.2 or less |
φ 3.2 ball probe |
φ 3.2 ball probe |
620 |
